6QAV17 Analog Input Q-Line Card

Technical Specification

The Westinghouse WDPF control system consists of individual processing units  which communicate over networks or “highways”. Two basic types of communications are available:
• WEStation which is based on a RISC workstation with added Westinghouse hardware supporting highway communication.
• Multibus-based communications based on Westinghouse boards including the functional processor and highway communication hardware.
Printed Circuit Board

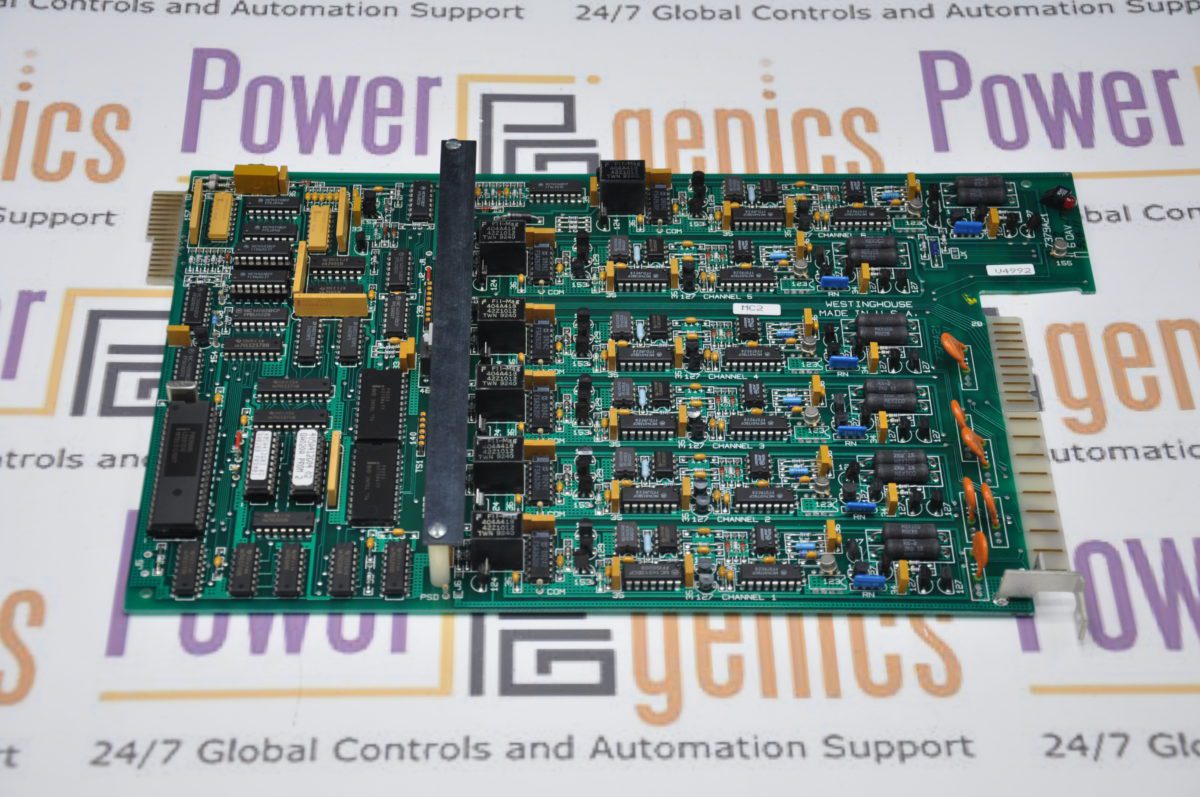

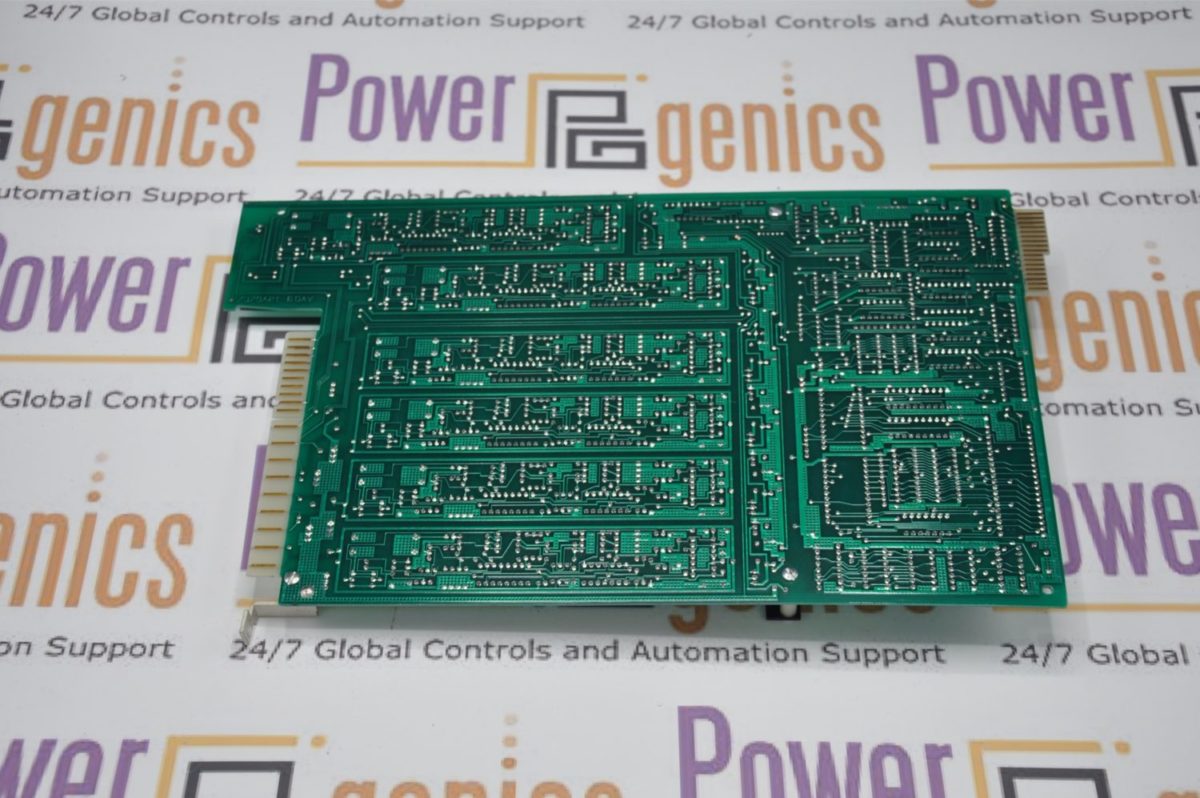

7379A21G02 Analog Input Q-Line Card

Technical Specification:

  • 7379A21G02
  • 6QAV17
  • Westinghouse
  • Analog Input Q-Line Card
  • Printed Circuit Board
